FAAC 108714.5SS S800H SBW 100° SS KIT

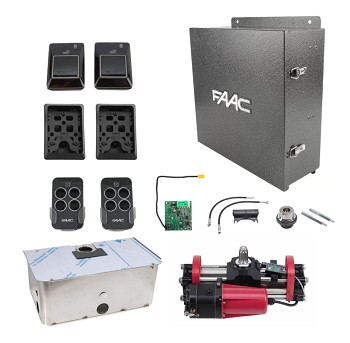

FAAC S800H Single SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Kit In Stainless Steel Support Box (16ft / 1760 lbs.) - 108714_5SS (Previously: 108714.5SS)

The FAAC S800H Dual SBW 100 Degree In-Ground Hydraulic Swing Gate Secondary Kit is tailored for creating a Primary/Secondary (bi-parting) system. Ideal for residential driveways and commercial entryways in wind-prone environments, this low voltage gate opener operates quietly and efficiently underground. It supports swing gates up to 16 feet and 1,760 pounds and offers a full 100-degree opening angle. The SBW design ensures maximum resilience against weather and wind, making it the perfect complement to your single swing gate opener system. Includes wiring, junction box, and support box for seamless integration.

Features:

• SBW version optimized for high wind zones
• Hybrid technology with integrated encoder
• 100 Degree gate swing per leaf
• Easy-to-install handles and integrated stops
• Safe operation with E024U control board and battery backup
• Discreet underground mounting preserves gate aesthetics
• Rated for UL325 Safety Standards

Specifications:

• Model: S800H SBW
• Actuator Voltage: 24 DC
• Control Board Voltage: 110/115/120 AC, 60 Hz, Single Phase
• Power: 60 W
• Current: 7 A
• Max Torque: 442 lbf ft (600 Nm)
• Max Opening Angle: 113 Degrees
• Gate Leaf Size: 16 ft (4.9 m), 1,760 lb (800 kg)
• Operating Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
• Protection Rating: IP 67
• Hydraulic Locks: Not Installed
