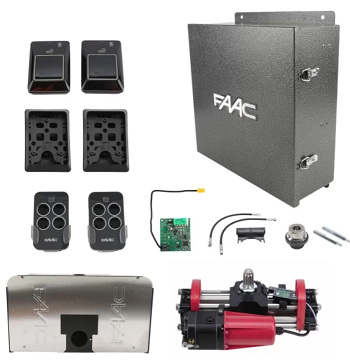

FAAC 108714.5, S800H SBW SINGLE KIT 100° STEEL

FAAC S800H Single SBW 100 Degree In Support Box In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - 108714_5 (Previously: 108714.5)

The FAAC S800H Dual SBW 100 Degree Hydraulic Swing Gate Opener Kit is purpose-built for installations exposed to strong winds and demanding conditions. As a low voltage, in-ground gate opener kit, it preserves your entrance's clean aesthetic while delivering full functionality. With dual actuators and hybrid hydraulic technology, it handles two swing gates up to 16 feet and 1,760 pounds each. Built for longevity and continuous use, this automatic farm gate opener or commercial swing gate operator meets UL325 safety standards and offers smooth, silent, and safe operation.

Features:

• SBW version for wind-exposed environments
• Hybrid technology with encoder-controlled positioning
• 100 Degree swing range per leaf
• Integrated mechanical stops for opening and closing
• Battery backup included for power loss continuity
• E024U control board with reverse-on-contact feature
• Durable in-ground installation with discreet appearance

Specifications:

• Model: S800H SBW
• Actuator Voltage: 24 DC
• Control Board Voltage: 110/115/120 AC, 60 Hz, Single Phase
• Power: 60 W
• Current: 7 A
• Max Torque: 442 lbf ft (600 Nm)
• Max Angle Speed: 8.2 degrees per second
• Max Opening Angle: 113 Degrees (100 Degree Version)
• Leaf Length (Each Gate): 16 ft (4.9 m)
• Leaf Weight (Each Gate): 1,760 lb (800 kg)
• Ambient Temp: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
• Duty Cycle: Continuous
• Protection Rating: IP 67
• Hydraulic Locks: Not Installed
