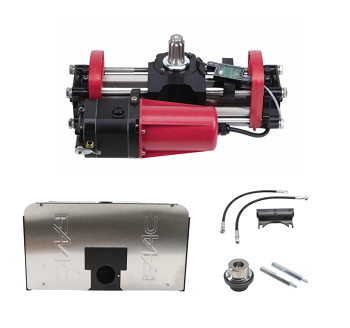

The FAAC 108712151.5 S800H CBAC Slave Kit 180° is a genuine hydraulic slave kit designed to extend a single-leaf S800H CBAC system into a synchronized dual-leaf gate layout, with a full 180° opening range.
This kit is built to closely match the performance of the master unit, delivering hydraulic motion, encoder feedback, and mechanical alignment necessary for smooth dual gate operation. The slave kit includes essential components to mirror the master’s motion, ensuring synchronized travel, safety, and reliability.
Ensure the control power is off and system is safe.
Install the slave actuator and support box opposite the master unit, matching geometry.
Mount the splined shaft collar for coupling to master motion.
Wire encoder and operator cables between slave and control panel, following FAAC wiring diagrams.
Configure synchronization parameters so the slave mirrors master motion.
Test full travel cycles and verify synchronization, safety, and stops.
Always disconnect all power before servicing hydraulic or electrical components.
Use genuine FAAC parts and follow FAAC installation guidelines.
Confirm hydraulic alignment and fluid cleanliness to avoid binding or leaks.
Ensure both leaf geometries (length, weight, pivot alignment) are well matched.
Test safety systems, reverse on contact, soft stops, and encoder synchronization periodically.
Professional installation recommended for optimal performance and compliance.
